Hydraulic Rubber
Vulcanizing Press

100 – 400 Ton

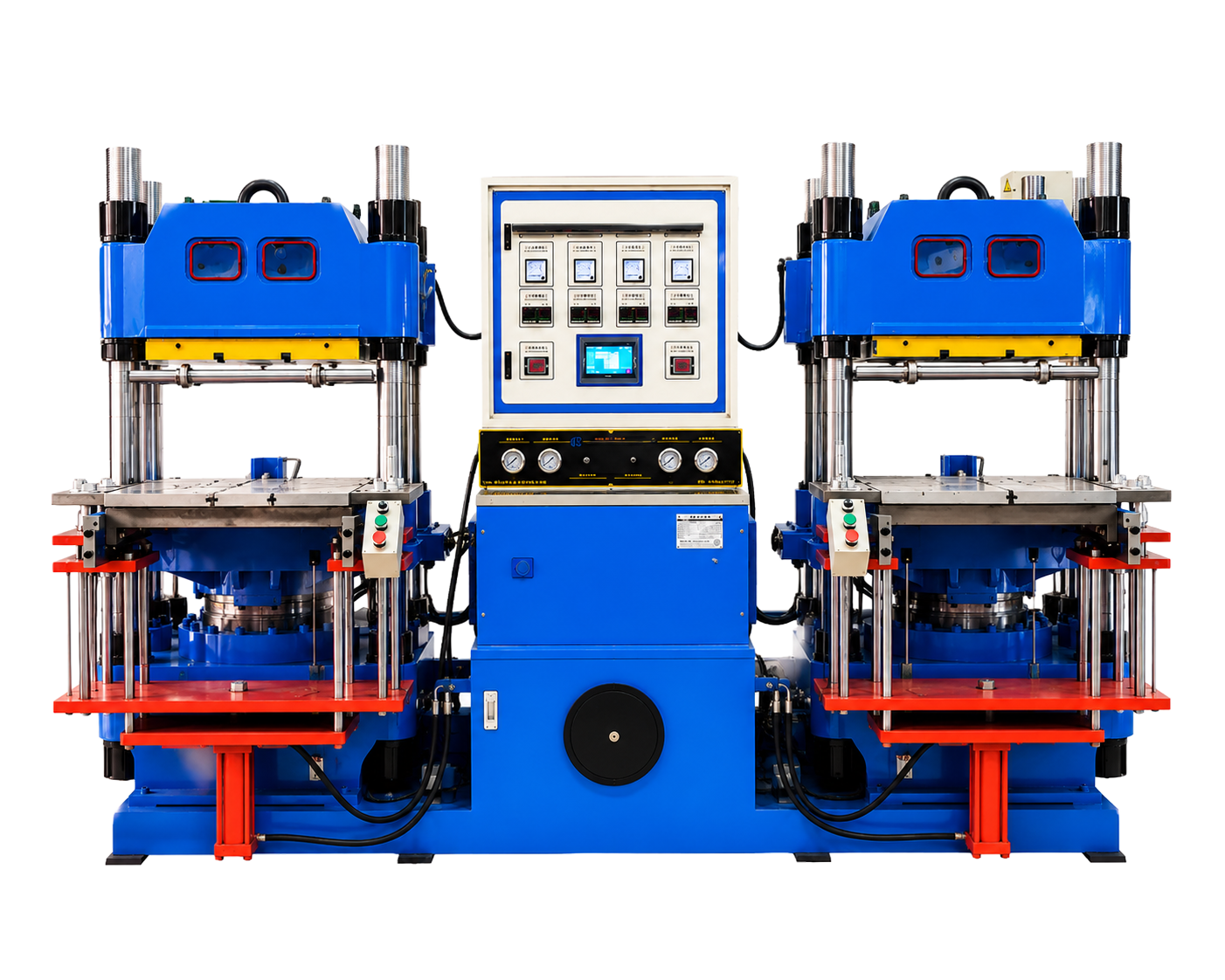

Hydraulic Rubber Vulcanizing Press

The Hydraulic Rubber Vulcanizing Press is a specialized press for vulcanizing and molding rubber and rubber products. Available from 100 to 400 tons across 8 models, it features a track mold with mold lift angle design to facilitate personnel access for 2-layer mold operation, a simple and fast mold adjustment for easy maintenance, dual power design with quiet low-failure simultaneous operation, and adjustable slow speed to suit different mold types. The up-down-in mold opening system with double layer mold opening enables high production efficiency for rubber seals, gaskets, and custom molded parts.

Model Range

8 models: 100 Ton / 150 Ton / 200 Ton / 250 Ton / 300 Ton / 350 Ton / 400 Ton / 500 Ton

Request a Quote → ← Back

Technical Specifications

Full Model Parameter Table

Scroll horizontally to view all model variants.

Parameter	100 Ton	150 Ton	200 Ton	250 Ton	300 Ton	350 Ton	400 Ton	500 Ton
Clamping Force (T)	100	150	200	250	300	350	400	500
Stroke (mm)	250	250	250	250	280	300	300	300
Work Platform (mm)	400×400	450×460	560×560	650×650	700×700	750×700	850×850	950×950
Main Cylinder Dia. (mm)	Φ250	Φ300	Φ355	Φ400	Φ450	Φ475	Φ500	Φ560
Horse Power (HP)	5×2	5×2	10×2	10×2	10×2	15×2	15×2	15×2
Electrical Power (kW)	12	17	22	34	34	43	48	72
Gross Weight (kg)	4500	5500	7000	9000	11000	15000	17500	21500
Type of Mold Opening	Up-down-in mold — double layer mold opening
Machine Size (m)	2.36×1.65×1.85	2.65×2×1.2	2.93×2.35×2.1	3.2×2.7×2.5	3.46×2.63×2.5	3.65×2.6×2.61	3.75×2.7×2.8	4.2×3.3×3.3

Machine Features

Structure & Key Advantages

Engineering highlights of the Hydraulic Rubber Vulcanizing Press.

Track mold with mold lift angle design facilitates personnel access for easy 2-layer mold operation and changeover.

Simple and fast mold adjustment mechanism for quick setup, easy maintenance and minimal production downtime.

Dual power design with quiet, low-failure simultaneous operation for stable and reliable production output.

Adjustable slow speed setting to suit different types of molds and rubber compound requirements.

Up-down-in mold opening with double layer mold opening system for efficient high-volume vulcanizing cycles.

Wide capacity range from 100 to 500 tons covering small precision parts through large industrial rubber components.

Applications

Industries & Use Cases

Designed for vulcanizing, molding and forming of rubber and rubber products across industrial sectors.

Rubber Seals & Gaskets

Rubber Vibration Dampers

Automotive Rubber Parts

Industrial Rubber Products

Custom Molded Rubber

Silicone Components

Interested in the Rubber Vulcanizing Press?

Send us your mold size, tonnage and production requirements — we will recommend the right configuration.
